Hotline0513-83351077

Service Hotline:0513-83351077 Tel:0513-833519400513-83841007
Fax:0513-83351087
SLF agitated kettle
Applications

The man applications refer to reaction process of production such as the mixing, abstraction, crystallization, heating, polymerization and dissolution in pharmaceutical, foodstuff, petrochemical engineering, agriculture and building industries.
Performance features
----Capable of meeting with all processing process with various stirring heat
----Materials in the kettle can be heated during mixing
----Optimized design meets with various kinds of manufacturing process requirements
Technical specifications
Type
Nominal capacity
(L)
Diameter
(mm)
Jacket diameter
(mm)
Central ring of support
(mm)
Number of supports
Power
(kw)
Actual capacity (L)
SLF50
50
Φ400
Φ500
Φ650
2
0.5
60
SLF100
100
Φ500
Φ600
Φ800
2
1.1
120
SLF300
300
Φ800
Φ900
Φ1100
4
2.2
360
SLF500
500
Φ900
Φ1000
Φ1328
4
2.2
600
SLF1000
1000
Φ1200
Φ1300
Φ1595
4
4.0
1200
SLF2000
2000
Φ1400
Φ1500
Φ1745
4
5.5
2400
SLF3000
3000
Φ1500
Φ1650
Φ1895
4
7.5
3600
SLF4000
4000
Φ1600
Φ1750
Φ2015
4
7.5
4800
SLF5000
5000
Φ1800
Φ1950
Φ2265
4
7.5
6000
Note:
1. Material of the agitated kettle in contacting with substance:
C: carbon steel, S: stainless steel, T: special material
2. Please make clear material, heating mode and impeller description during ordering.
3. Dimensions in the table are only for references. The company can offer special dimension design and production.

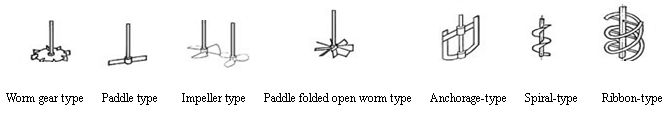

Table for model selection


Note: О denotes good performance
