FP ceramic cartridge
■Product features
The ceramic cartridge is sintered with emery, quartz flour and vanadine fire-proof material as its aggregates and some binding and modification agents in a temperature more than 1000 oC. There are large quantities of air pores evenly distributed within the structure, featuring micro-diameter control, high porosity and uniform pore diameter, characteristic of low filtration resistance, fine penetration, high-resistance to high temperature, acid-base erosion and long lifetime, easy to regeneration.

■Applications
—— Petroleum refinery:
—— Chemical industry: Filtration for acid and base, mixing and filtering of gas.;
—— Pharmaceutical industry: Filtration of asepsis water and gas
■Main technical specifications

Material spiracle percentage
%
Ventilate capability
m3·cm/m2·h·mmH2O
Press. resistance
MPa
Acid resistance % alkaline resistance % Max Press. drop
MPa
Temperature resistance
Filtering accuracy
μm
Emery 28-50 0.02-20 20-100 ≥98 ≥98 0.8 800 0.5、1、
3、5、10
Quartz 30-60 0.05-20 10-40 ≥99 ≥95 0.6 200
■Main dimensions
Type
D (mm)
D(mm)
L (mm)
Φ50
Φ30
760
Φ60
Φ40
100
Φ70
Φ40
1000
Φ200
Φ140
1000
Φ400
Φ350
500

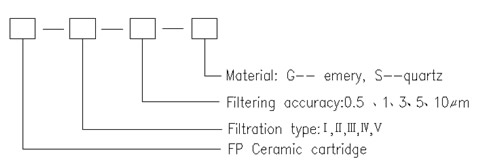

Example: FP-III-5G denotes an emery ceramic cartridge (Exradiusφ70, Inradiumφ40) with filtering accuracy for 5μm.
